Larix Broadcaster - Storm Streaming Cloud

To connect Larix to the Storm Streaming Cloud, select the gear icon from the main application window. Then choose Connections, click the plus icon in the top-right corner, and select Connection from the list.

×

Select the gear icon from the main application window.

×

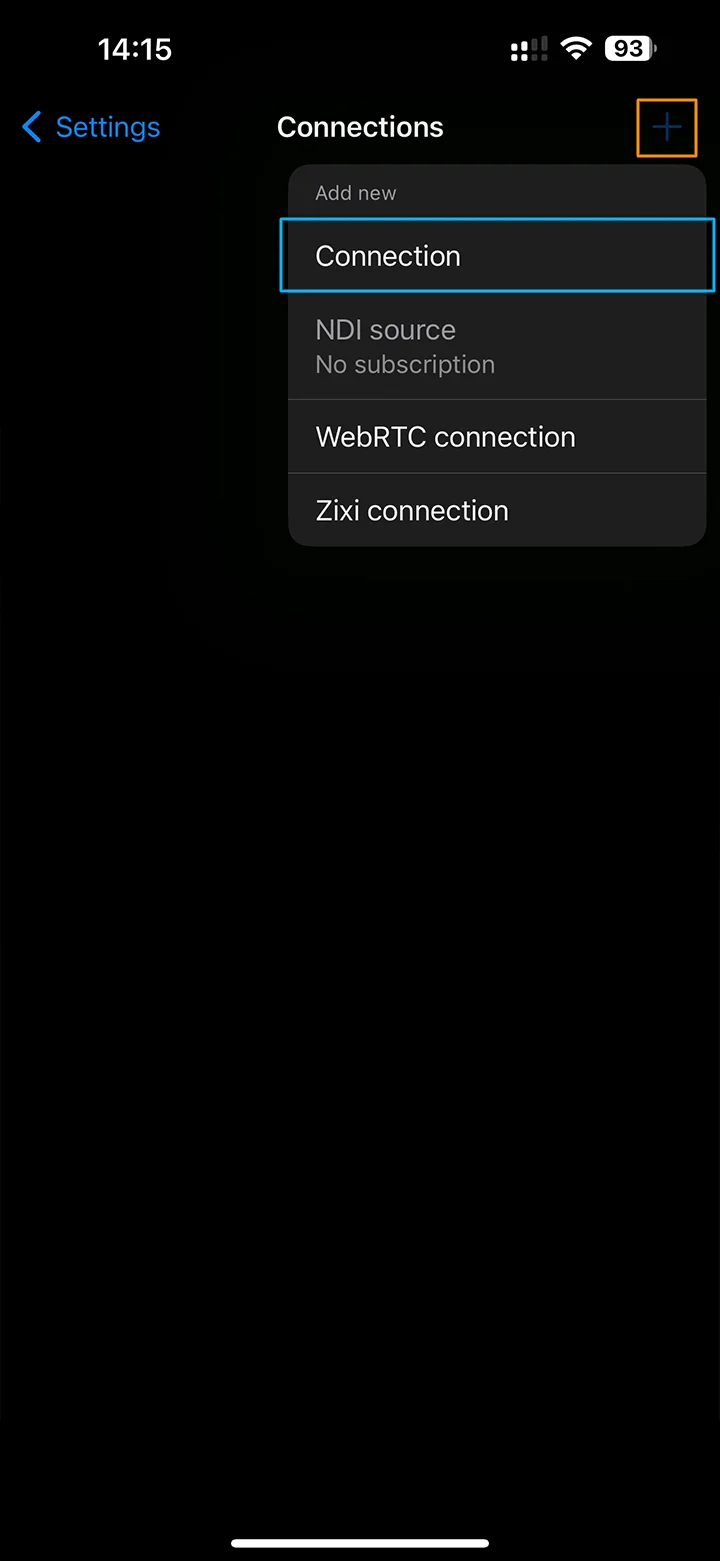

Click the plus icon in the top-right corner, and choose Connection from the list.

In the next step, a window will appear with a list of connection settings. In the Name field, you can enter any name you like, such as Storm Streaming Cloud. Next, you need to enter the full RTMP link. Simply combine your server URL with a stream key, separated by a single slash.

We'll also have to select the proper authentication method (target type), which will appear once the URL is in place. Please select RTMP Authorization from the list. Now, all we have to do is provide a username (Login) and a password.

×

Enter the broadcast details as well as login credentials.

Make sure to save your changes.

On the main program screen, select the gear icon and then go to Video.

×

Select the gear icon and then go to Video.

Now apply the following settings:

1. Resolution - depending on your device capabilities, pick the right resolution like 1280x720. Then under the Bitrate field, make sure to provide a matching bitrate according to this table:

   Resolution	FPS	Bitrate
   1920x1080	60	6000
   1920x1080	30	4500
   1280x720	60	4500
   1280x720	30	3000

2. Enable B-frames - off

3. H.264 Profile - Main/High

4. Keyframe frequency - 1 sec

×

Apply the settings and choose the appropriate bitrate for your resolution and FPS.

Once all settings are in place, head back to the main application window and start broadcasting.

×

Head back to the main application window and start broadcasting.
