RESTful Basics - Storm Streaming Cloud

Introduction

Below, you'll find a basic example of how to use our RESTful API to manage your streams on Storm Streaming Cloud. The API provides total control over your streams, allowing for further automation of the stream creation process. A complete API Collection for Postman can be downloaded here.

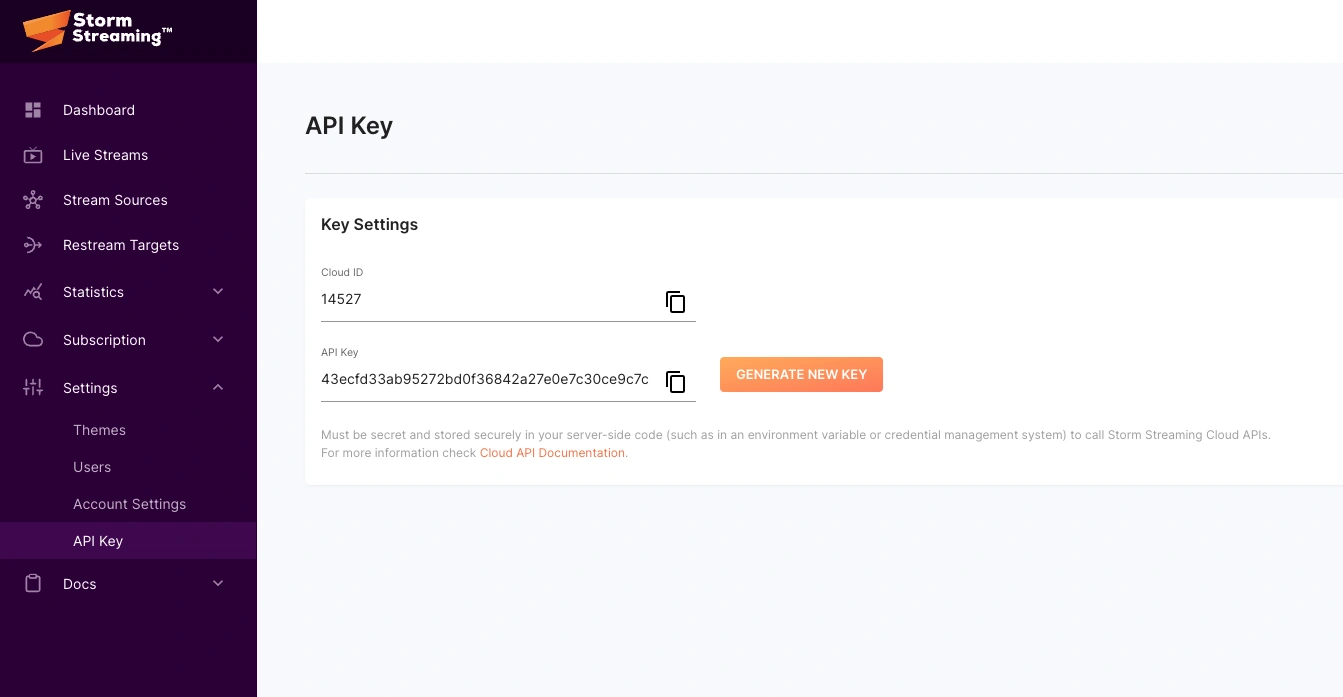

API Authentication

The Storm Streaming Cloud API endpoint requires the x-api-key header to authenticate and authorize requests. Your personal API key can be acquired from the following webpage: https://cloud.stormstreaming.com/settings/api-key.

Basic Stream Create Request

Endpoint used for creating a new stream with minimal parameters.

Request

Property	Value
Method	`POST`
URL	`https://api.stormstreaming.com/api/request/stream`
Content-Type	`multipart/form-data`
Authentication	`x-api-key` header

Request

bash

curl -X GET "https://api.example.com/api/applications" \
  -H "x-api-key: YOUR_API_KEY"

Request Body

Parameter	Type	Required	Description
`name`	string	Yes	Name of the stream
`regionId`	integer	Yes	Region ID for the stream server

Request Body

json

{
  "name": "My stream",
  "regionId": 1
}

Response

Parameter	Type	Description
`message`	string	Response status message
`stream.streamKey`	string	Unique stream key identifier
`stream.name`	string	Name of the stream
`stream.description`	string	Stream description (nullable)
`stream.regionId`	integer	Region ID
`stream.isPublished`	boolean	Whether the stream is published
`stream.sourceType`	string	Source type (`PUSH` or `PULL`)
`stream.encoderMode`	string	Encoder mode (`PASSTHROUGH` or `TRANSCODE`)
`stream.credentials`	object	Authentication credentials for RTMP connection
`stream.theme`	object	Player theme configuration
`stream.createdAt`	string	Stream creation timestamp (ISO 8601)

Successful Response (200)

json

{
  "message": "Stream has been created.",
  "stream": {
    "streamKey": "9ed8b119f8ed9425a428a47846e55c6b761afc6c",
    "name": "My stream",
    "description": null,
    "regionId": 1,
    "isPublished": true,
    "countdown": {
      "isCountdown": false,
      "startDate": null,
      "timezone": null
    },
    "sourceType": "PUSH",
    "encoderMode": "PASSTHROUGH",
    "credentials": {
      "username": "902aee51",
      "password": "f9aef6eac1d977d"
    },
    "thumbnail": null,
    "splashscreen": null,
    "source": null,
    "targets": [],
    "theme": {
      "id": 54,
      "name": "test",
      "isDefault": 1
    },
    "isCreated": true,
    "createdAt": "2024-01-25T11:10:53.000000Z"
  }
}

Error Response (4xx/5xx)

Parameter	Type	Description
`message`	string	Human-readable error message

json

{
  "message": "The selected source type is invalid."
}

Possible Response Code Explanation

Code	Sample body	Description
200	`{"message": "Stream has been updated."}`	Request processed successfully.
400	`{"message": "The selected source type is invalid."}`	Validation error has occurred.
401	`{"message": "Unauthenticated."}`	Provided x-api-key header is incorrect.
403	`{"message": "You have exceeded the limit of concurrent live streams..."}`	User has surpassed the allowed number of concurrent live streams. Either terminate an existing stream or upgrade subscription plan.
404	`{"message": "Stream not found."}`	The resource was not found.
429	`{"message": "Too Many Attempts."}`	Excessive number of requests. The limit is 500 requests per minute.
500	`{"message": "Internal Server Error."}`	Internal server error has occurred.

Notes

Rate limit: 500 requests per minute.
The regionId parameter determines which server will receive the stream.
Streams are created with isPublished: true by default.
